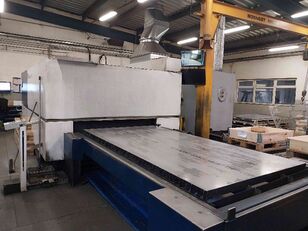

Type: TruLaser 5030 fiber (L68)
Working area: 3000 x 1500 x 115 mm
Laser rated output: 8000 Watt
Control: Siemens Sinumerik 840 D SL
Max. sheet thick./ST: 25 mm
Max. speed: 265 m/min
CONFIGURATION
Standard Configuration
Machine
Closed Machine
Integrated cabinet with roller shutter
Automatic pallet changer in longitudinal direction
Torque drive in combination with direct linear drives
Enclosed beam delivery via laser light cable
Chiller
Integrated electrical cabinets with inside light
Conveyor Belt for small parts slug
Work area lighting
Positioning laser diode
Spray device
FocusLine
NitroLine
PlasmaLine
TRUMPF Laser
Integrated solid-state laser TruDisk 3001 with 1 laser output
Laser chiller unit (water-air)
Stimulation via pump diodes
Laser power control
Cutting Unit
Universal cutting head
Single cutting head strategy
Safety glass to avoid lense contamination
Safety glass monitoring
ControlLine automatic height control and sheet edge detection
Control
Easy shop floor programming
Fast Reproduction
Control Sinumerik 840D SL
19” Touch screen
Technology data is integrated
Brass cutting package
Copper cutting package
Automatic shutdown
Programmable cutting gas pressure
Multi Sheet Processing
ContourLine
Microweld
FastLine
FlyLine
AdjustLine
Condition Guide
Data transmission
USB-interface
Central Link
RJ45 network connection
Safety
CE Label
Light Barriers
Multi chamber exhaust system
Compact dust extractor
Machine enclosure with certificated window (right door)
Additional equipment
Laser options
External solid-state laser TruDisk 8001 with 1 laser output includes
BrightLine fiber
Performance package fusion cut
Cutting package Highspeed
Smart Beam Control
Machine options
Smart Nozzle Automation comprises
Nozzle changer
Nozzle inspection
Smart Skip
Cutting package Highspeed Eco (only with TruDisk 6001 or TruDisk 8001)
Door window on left side for better insight
